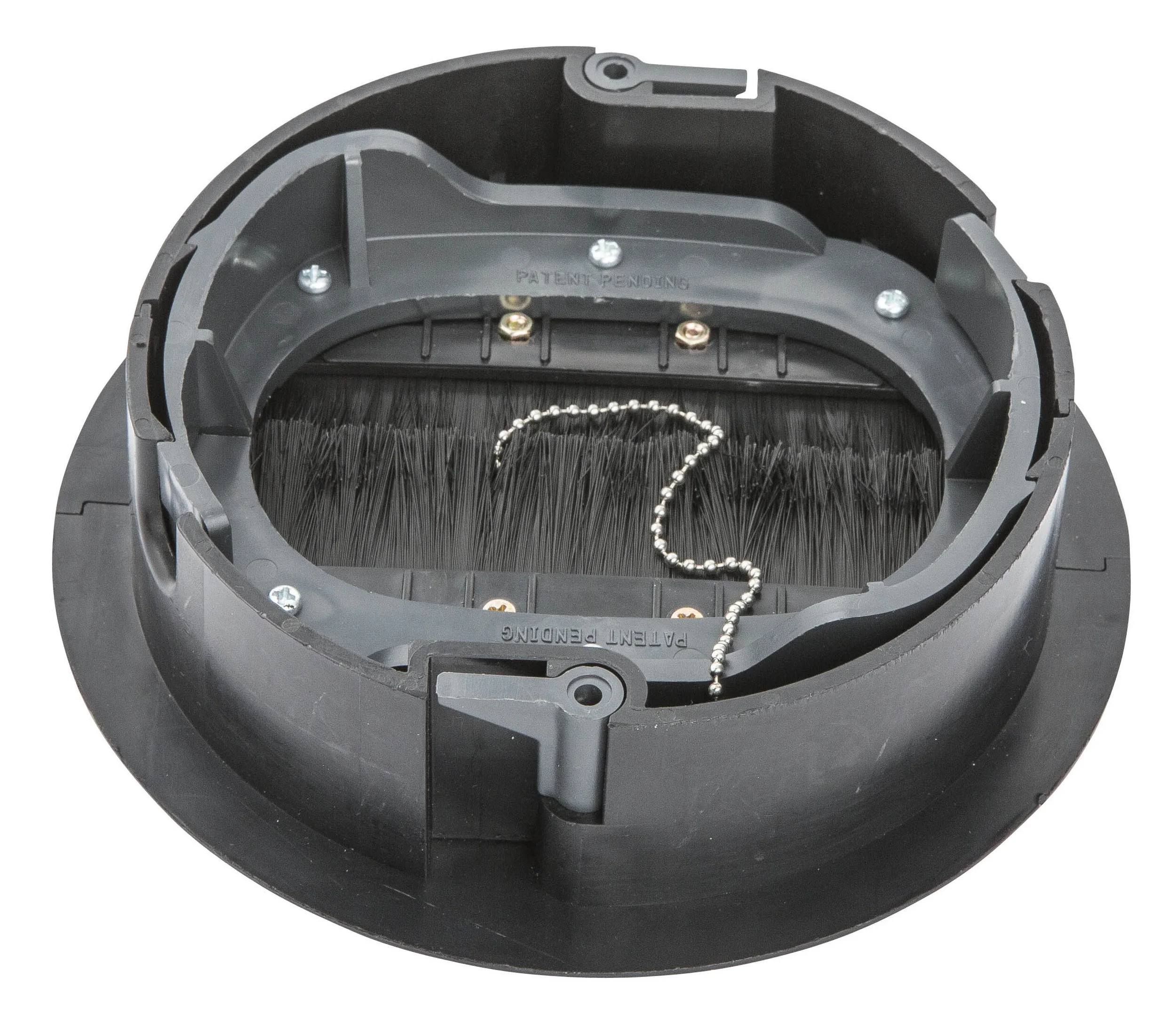

Heavy Duty Circular Floor Grommet with quality nylon 6 brushes for sealing around cables through Access Flooring. Controls bypass air by forming airtight seal around cables. Eliminates AIR LEAKAGE in Underfloor Air Installations. Grommet splits into (2) sections for easy installation. No fishing cables through the grommet. Engineered safety cover provides protection feature and eliminates the jobsite issues of stepping into open holes. Cover also protects the gasket area when the grommet is not in use.

Grommet mechanically locks into a 6.0” diameter hole in the access floor panel via (2) screw toggles located on the top surface of the grommet, exposed screws are finished with a cap plug that matches the grommet surface. Grommet is constructed from engineered fireproof materials.
